How to add custom font sets to a narrat game

Font Sets

Narrat can let players choose their preferred font in the system menu. To that end, the game can define sets of fonts to be picked from. Each set is made of a header font and a body font.

To setup font sets, create fonts.yaml in the config folder, and add it to the list of config files being imported in config/index.ts.

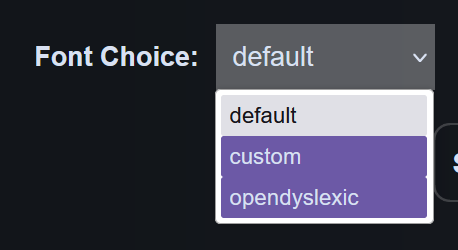

When there are multiple font sets, the option to choose a font will appear in the system menu:

Configuring font sets

The fonts config file contains a fontSets object where each set of font is named. The default set is required if using this feature and should contain whatever font you want to use when the game first load. Other font sets can have any name (here: custom and opendyslexic).

Within each set, there are different fonts to specify. At the moment narrat only needs header and body fonts. Each font needs a few properties:

• name: The CSS font family name of the font. This is the name that will be used in CSS to refer to the font.
• fontFamily: The CSS font family string to use in CSS. This is what will be used as the font-family property when the engine uses this font
• files: An array of font files to load. Each font needs at least one file, and the file can either just be a string, or an object which passes additional options (necessary for fonts that have separate files for bold, italics, etc):

If a font has multiple files and needs to pass options, then the format is:

• file: URL of the font file
• options: An object with options to pass to the font. See Font face options.

The default game template comes with a few fonts already setup as an example:

allowChoosingFont: true
fontSets:
  default:
    header:
      name: Baskervville SC
      fontFamily: '"Baskervville SC", serif'
      files: ['fonts/Baskervville_SC/BaskervvilleSC-Regular.ttf']
    body:
      name: 'Montserrat'
      fontFamily: '"Montserrat", sans-serif'
      files:
        - file: 'fonts/Montserrat/Montserrat-VariableFont_wght.ttf'
          options: {}
        - file: 'fonts/Montserrat/Montserrat-Italic-VariableFont_wght.ttf'
          options:
            style: italic
  custom:
    header:
      name: Nerko One
      fontFamily: '"Nerko One", cursive'
      files: ['fonts/Nerko_One/NerkoOne-Regular.ttf']
    body:
      name: 'Sevillana'
      fontFamily: '"Sevillana", cursive'
      files: ['fonts/Sevillana/Sevillana-Regular.ttf']
  opendyslexic:
    header:
      name: 'OpenDyslexic'
      fontFamily: '"OpenDyslexic", sans-serif'
      files:
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Regular.woff2'
          options:
            weight: 400
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Bold.woff2'
          options:
            weight: 700
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Italic.woff2'
          options:
            style: italic
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Bold-Italic.woff2'
          options:
            weight: 700
            style: italic
    body:
      name: 'OpenDyslexic'
      fontFamily: '"OpenDyslexic", sans-serif'
      files:
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Regular.woff2'
          options:
            weight: 400
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Bold.woff2'
          options:
            weight: 700
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Italic.woff2'
          options:
            style: italic
        - file: 'fonts/OpenDyslexic/OpenDyslexic-Bold-Italic.woff2'
          options:
            weight: 700
            style: italic

How fonts are used

The fonts set the following CSS variables within #narrat:

• --font-body: The body font family
• --font-header: The header font family

Adding new keys to the fontSets object will automatically create matching --font-[name] CSS variables, too.

Then, in the narrat CSS, the font-family property is set to these variables in the relevant places (font-body is set at the top level, and font-header is set on all header tags).

TIP

If you are using custom fonts in CSS in your own CSS, you may need to think about how these two features might clash
